Nested Virtualization in Performance Cloud VMware (NSX-T)

Description

Some use cases require exposing hardware assisted virtualization which is also known as Nested Virtualization or Intel VT-x. This service is available in Performance Cloud VMware (NSX-T), here is a guide on how to enable this feature.

Notes

Although the feature is available, we do not suggest using the feature in a production environment. Sherweb will not provide support for any issues after enabling this feature on virtual machines.

Procedure

  1. Login to the Performance Cloud VMware (NSX-T) portal using your credentials.

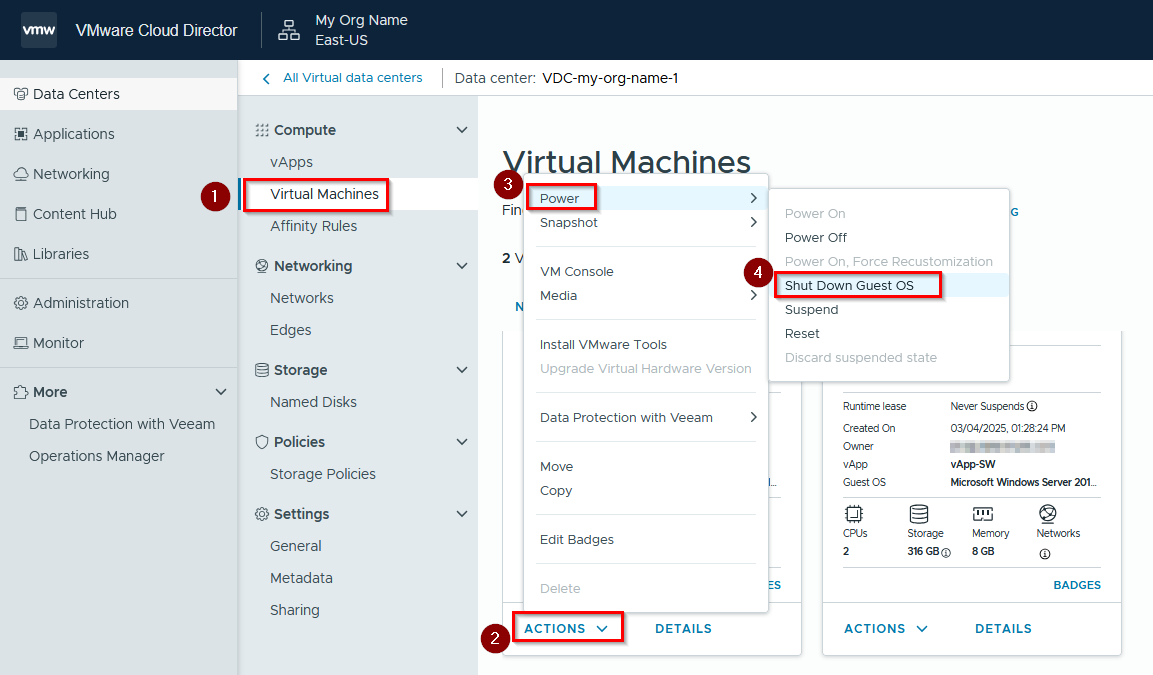

  2. Turn off the virtual machine where you want to enable this feature.

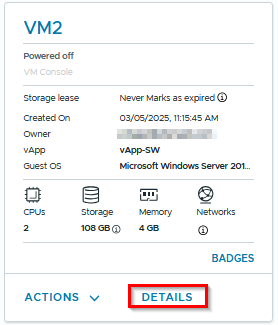

  3. Open the details pane of your virtual machine.

    Graphical user interface, application Description automatically generated

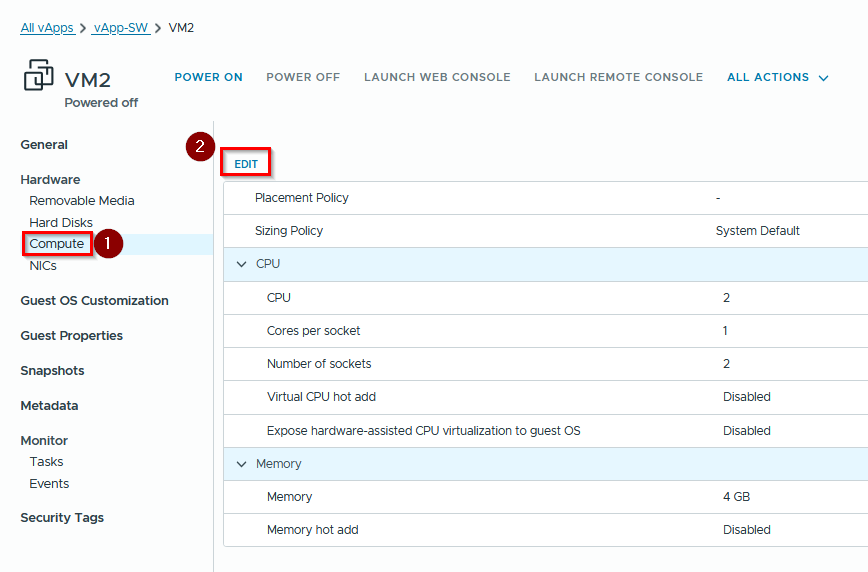

  4. Under Hardware, go into the Compute section.
    Then, click on EDIT.

    Graphical user interface, text, application, email Description automatically generated


  5. Toggle the switch labeled “Expose hardware-assisted CPU Virtualization to guest OS”

    Graphical user interface, application Description automatically generated


  6. Click SAVE

  7. Turn on the virtual machine
