How to manage vApp snapshots with Performance Cloud VMware (NSX-T)


TABLE OF CONTENTS

Description

By creating a snapshot of a vApp, it creates a snapshot for all the virtual machines in the vApp. After the creation of snapshots, you can revert all virtual machines in the vApp to the most recent snapshot or remove all snapshots.

Procedures

Create a vApp snapshot



  1. Login to the Performance Cloud VMware portal using your credentials.

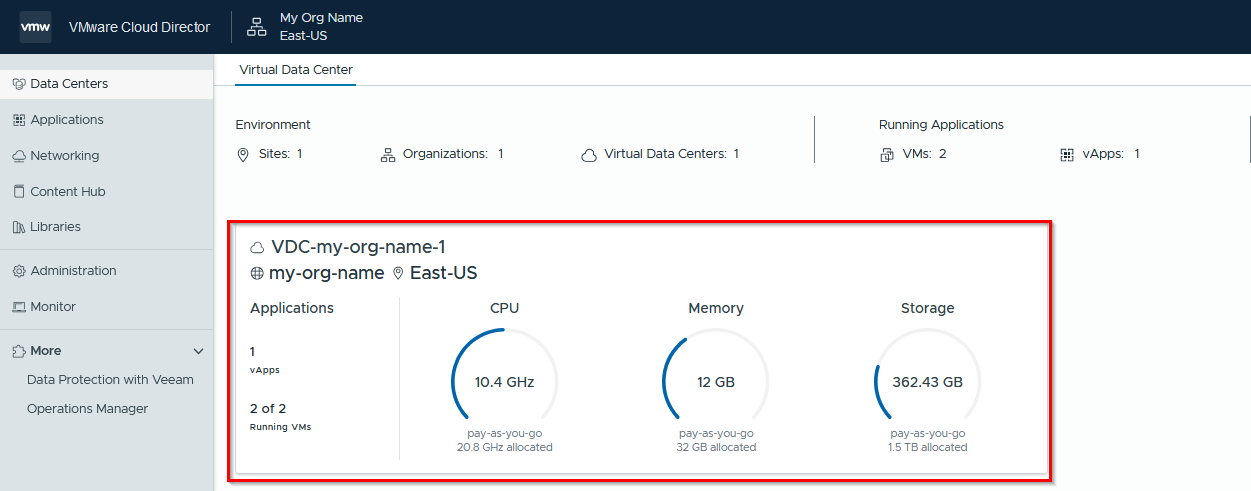

  2. Click on your virtual data center

    Graphical user interface, website

Description automatically generated

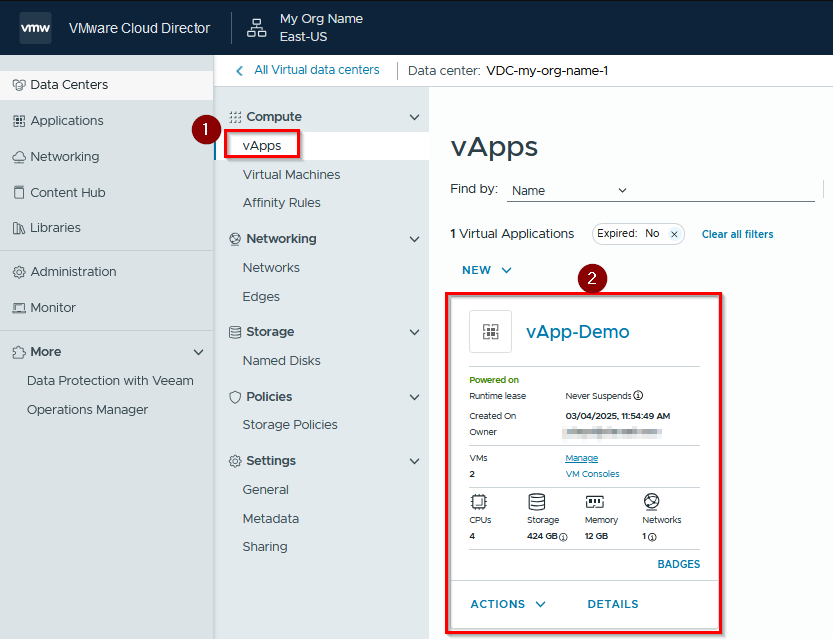

  3. Go into the vApps section under Compute and identify the desired vApp from the list. Note that the vApp contains two (2) virtual machines in the example below.

    Graphical user interface, application

Description automatically generated


  4. Click on ACTIONS, then go to Snapshot, then click on Create Snapshot

    Graphical user interface, application

Description automatically generated

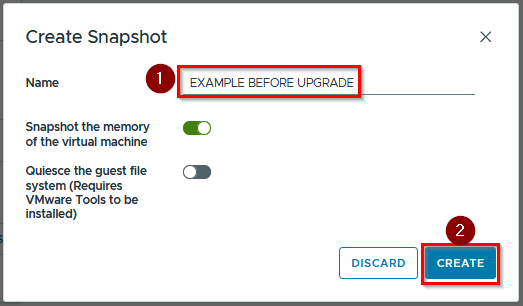

  5. Enable optional snapshot settings if desired and click on CREATE.

    Graphical user interface, text

Description automatically generated


    Snapshots for all virtual machines in the vApp are now creating at once.




Remove a vApp snapshot



  1. Login to the Performance Cloud VMware portal using your credentials.

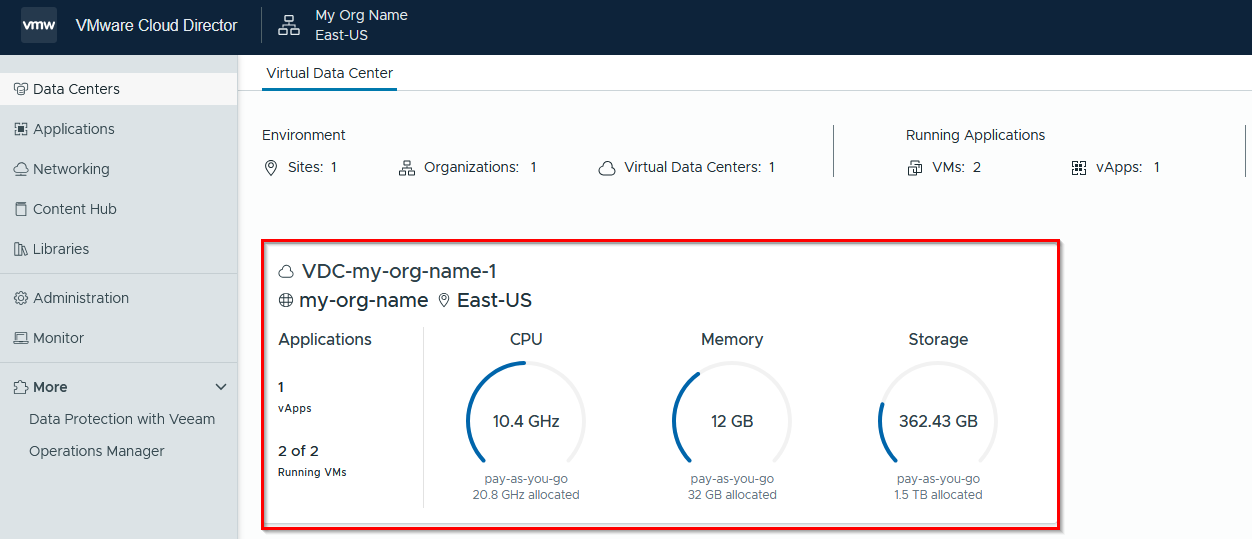

  2. Click on your virtual data center

    Graphical user interface, website

Description automatically generated

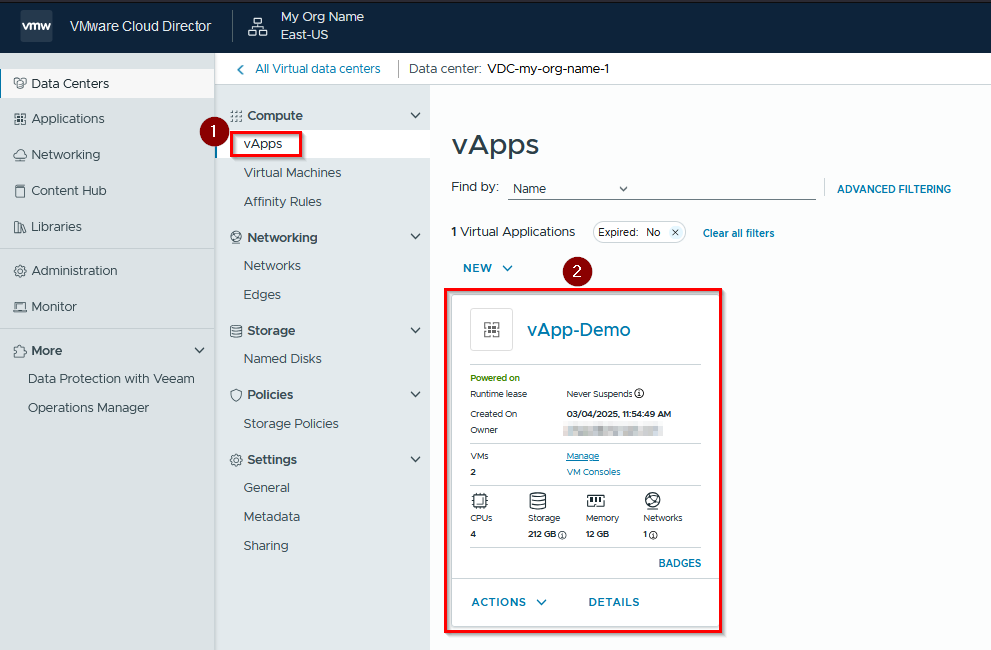

  3. Go into the vApps section under Compute and identify the desired vApp from the list. Note that the vApp contains two (2) virtual machines in the example below.

    Graphical user interface, application

Description automatically generated

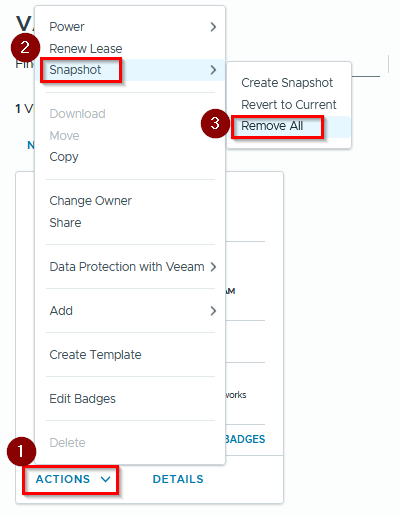

  4. Click on ACTIONS, then go to Snapshot, then click on Remove Snapshot

    Graphical user interface, application, Teams

Description automatically generated

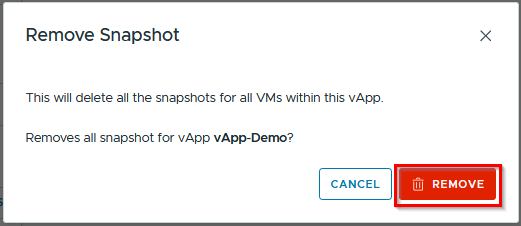

  5. Click on OK to confirm the task.

    Graphical user interface, text, application

Description automatically generated


    Snapshots are now removed for all virtual machines in the vApp.





Revert a vApp snapshot



  1. Login to the Performance Cloud VMware portal using your credentials.

  2. Click on your virtual data center

    Graphical user interface, website

Description automatically generated


  3. Go into the vApps section under Compute and identify the desired vApp from the list. Note that the vApp contains two (2) virtual machines in the example below.

    Graphical user interface, application

Description automatically generated

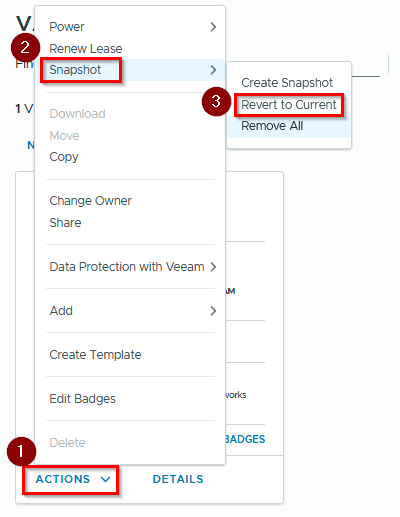

  4. Click on ACTIONS, then go to Snapshot, then click on Revert to Snapshot

    Graphical user interface, application

Description automatically generated

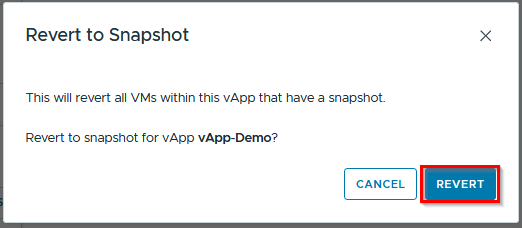

  5. Click on OK to confirm the task.

    Graphical user interface, text, application

Description automatically generated


    All virtual machines in the vApp are now reverted to the state when taking the snapshot.
