How to hot add memory on a virtual machine with Performance Cloud VMware (NSX-T)

Description

The Memory hot add feature allows you to add memory resources (RAM) for a virtual machine while that virtual machine is powered on.

Important Notes

  • Please make sure to have enough resources in your virtual Data Center before trying to add resources on virtual machines. If needed, add required resources in your account management portal Cumulus.

  • When you enable the CPU hot add feature, vNUMA is automatically disabled for the virtual machine. By default, vNUMA is enabled for all virtual machines that have 8 vCPUs or more to improve performance. Please review this article for more details on NUMA.

  • Guest operating systems that support Hot Add are Windows Server 2003 and newer, and Linux using kernel 3.8 and above.

Procedures


Enable the Memory CPU hot add feature on a virtual machine

  1. Login to the Performance Cloud VMware portal using your credentials.

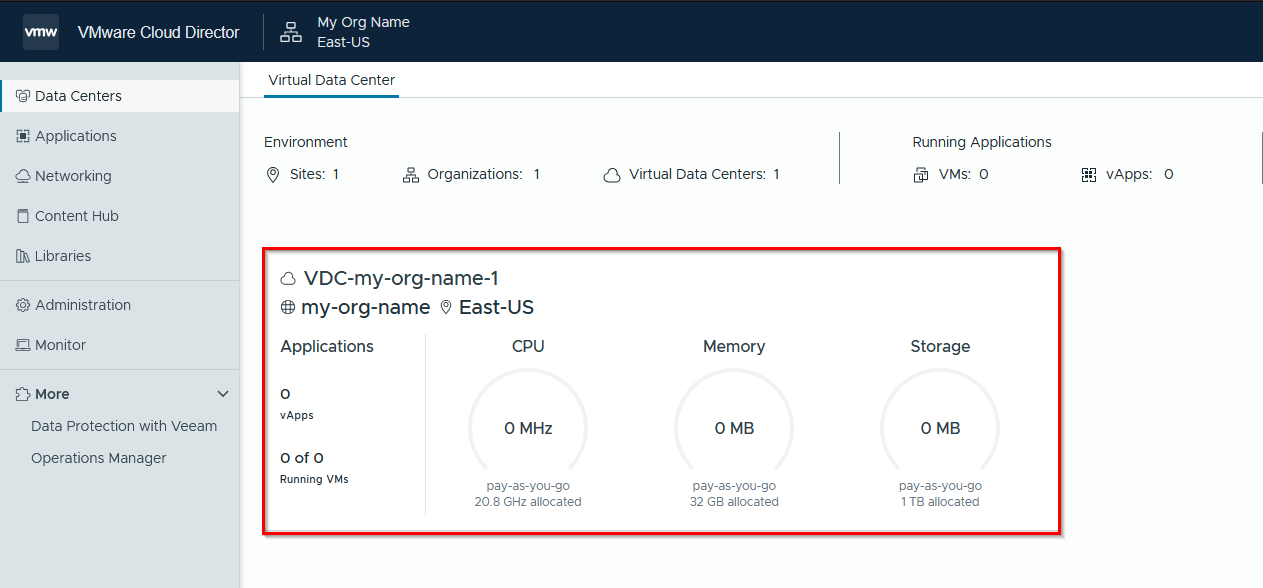

  2. Click on your Virtual Data Center (vDC)

  3. Optional but strongly recommended – Have latest VMware tools available installed in the virtual machine. Please review this online article on how to update VMware tools on virtual machines.

  4. Go into the Virtual Machines section and identify your virtual machine.

    Graphical user interface, application

Description automatically generated


  5. Shutdown the virtual machine.

    Graphical user interface, application

Description automatically generated

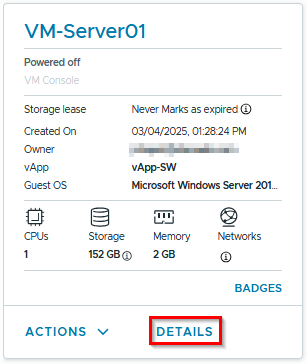

  6. Open the virtual machine details.

    Graphical user interface, text, application

Description automatically generated


  7. Under Hardware, go into the Compute section.
    Then, click on EDIT.

    Graphical user interface, text, application, email

Description automatically generated


  8. Toggle the Memory hot add button to enable the feature.
    Then, click on SAVE.

    Graphical user interface, application

Description automatically generated

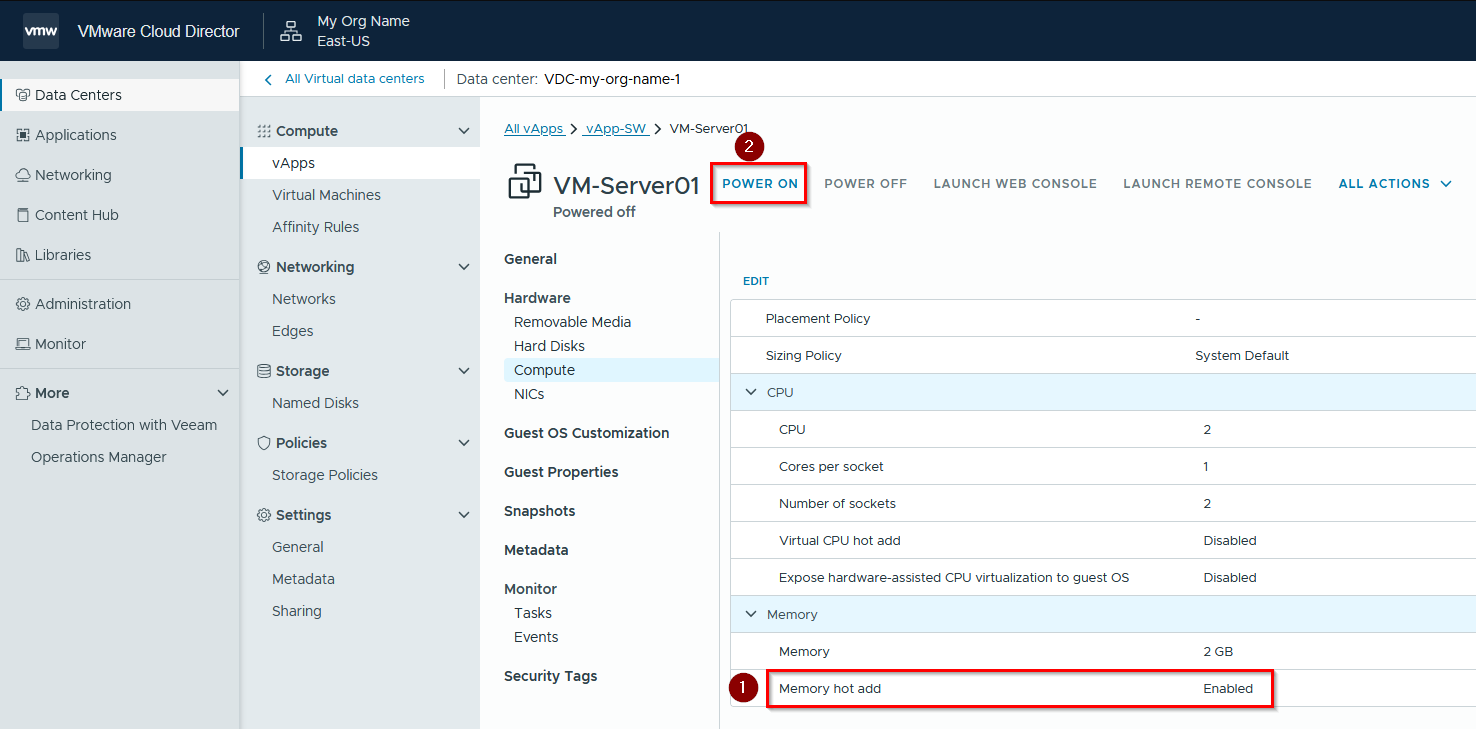

  9. Notice that the Memory hot add feature is now enabled.
    Then, power on the virtual machine.

    Graphical user interface, text, application, email

Description automatically generated


  10. The virtual machine is now ready if you want to add more memory later while the virtual machine is running.




Increase the amount of memory on a running virtual machine



  1. Login to the Performance Cloud VMware portal using your credentials.

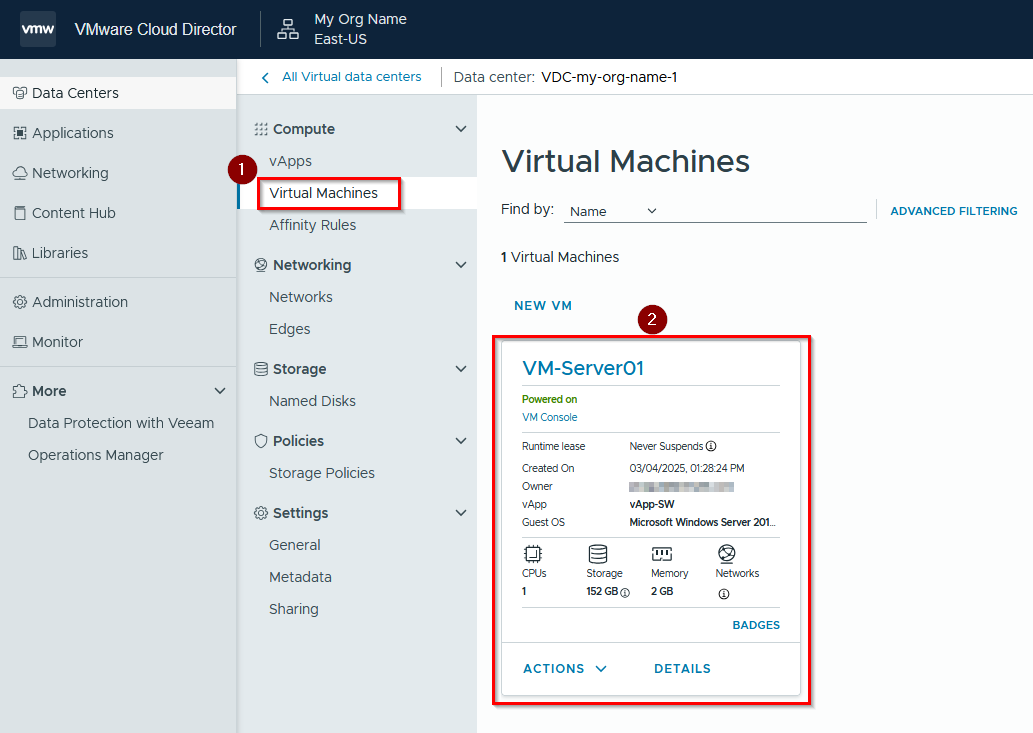

  2. Go into the Virtual Machines section and identify your virtual machine.

    Graphical user interface, application

Description automatically generated

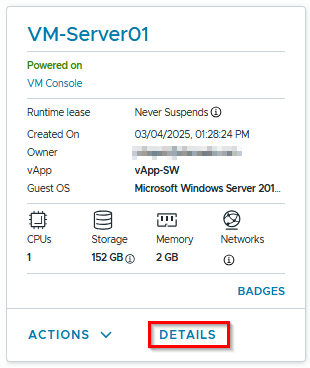

  3. Open the virtual machine details.

    Graphical user interface, text, application

Description automatically generated


  4. Under Hardware go into the Compute section.
    Then, click on EDIT.

    Graphical user interface, text, application, email

Description automatically generated


  5. Set the desired amount of memory and click on SAVE.

    Graphical user interface, text, application

Description automatically generated
