Connect Veeam Backup & Replication (VBR) with the Veeam Service Provider Console (VSPC) with Sherweb



TABLE OF CONTENTS

Description

To manage an existing Veeam Backup & Replication (VBR) server using the Veeam Service Provider Console (VSPC), a configuration must be made inside the Veeam Backup & Replication (VBR) server. That configuration will also add the Veeam Cloud Connect backup repository to your Veeam Backup & Replication (VBR) server.

Requirements

  • To allow the connection of Veeam management agents and Veeam Backup & Replication (VBR) servers to the Veeam Service Provider Console (VSPC), the outbound network traffic to gw.ca.vspc-cloud.com (for the CAN console) and gw.us.vspc-cloud.com (for the US console) on port TCP 6180 must be allowed.

  • All Veeam Backup & Replication (VBR) servers that you manage using Veeam Service Provider Console need a Veeam license. Managing Veeam Backup & Replication Community Edition using the Veeam Service Provider Console (VSPC) is not supported.

  • The Veeam management agent was previously deployed on the destination machine. If not already installed, here is the article about the deployment of the Veeam management agent.

Procedure

  1. Open your Veeam Backup & Replication (VBR) console.

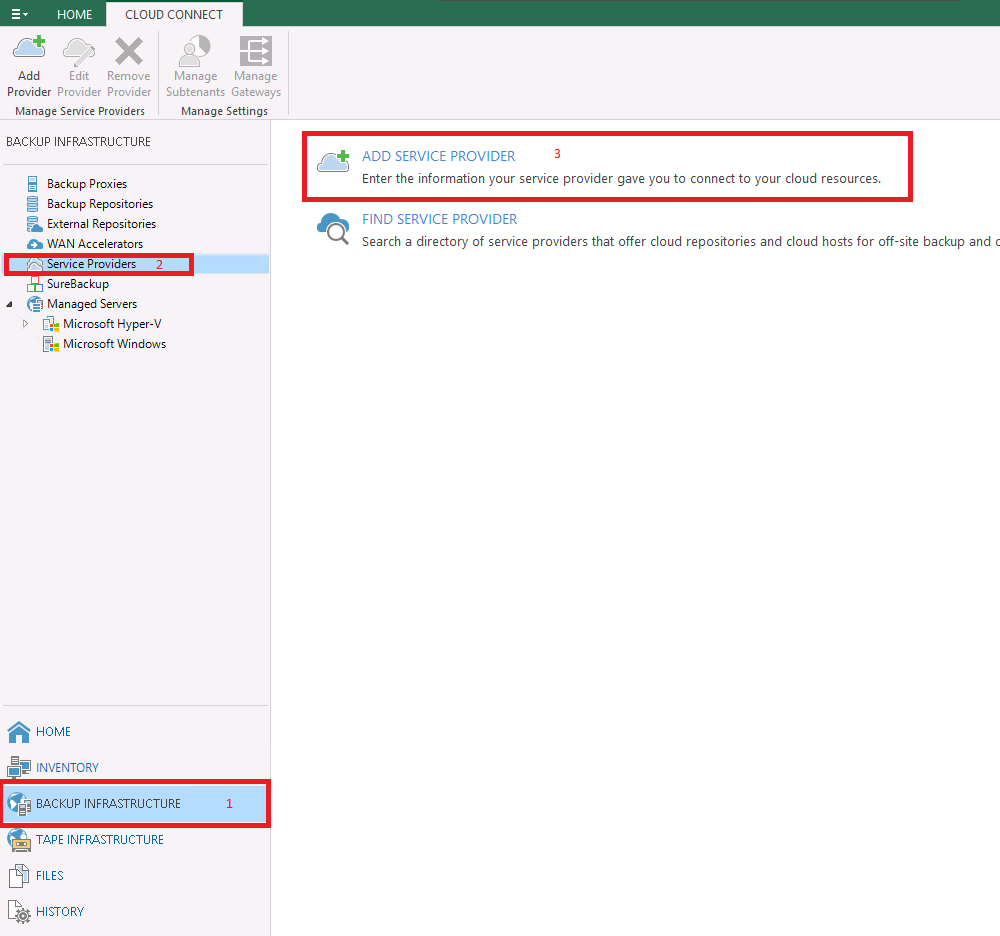

  2. Go the Backup Infrastructure section and click on Service providers.
    Click on “ADD SERVICE PROVIDER”.

    A screenshot of a computer Description automatically generated


  3. Enter the following information and ensure to allow the option to manage the server by the service provider.
    Then, click on Next.

    DNS name to use: gw.ca.vspc-cloud.com (for the CAN console) or gw.us.vspc-cloud.com (for the US console)
    Port: 6180

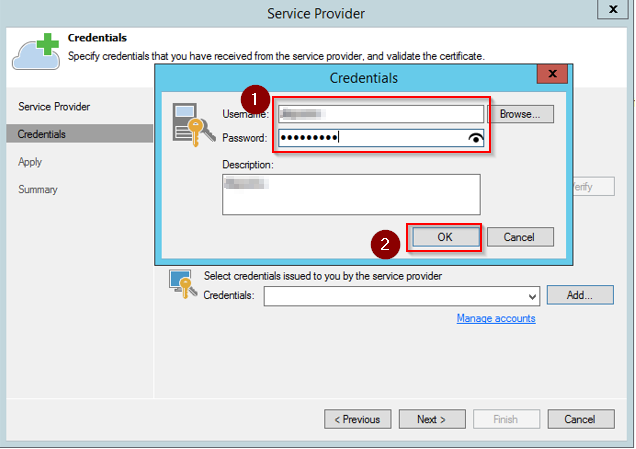

  4. On the next screen, add new credentials. Enter the Company Owner credentials (username and password created when creating the organization). Then, click on Next.

    A screenshot of a computer Description automatically generated


  5. Review the Summary configuration for the Service Provider and click on Finish

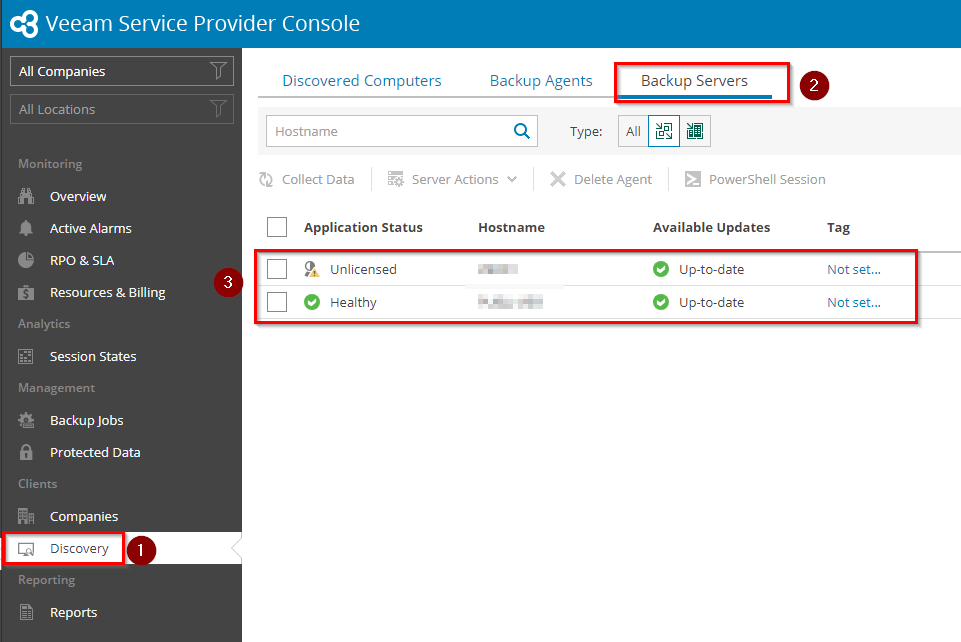

  6. Then, after few minutes, the Veeam Backup & Replication (VBR) server will appear in the Veeam Service Provider Console (VSPC).

    A screenshot of a computer Description automatically generated

References

https://helpcenter.veeam.com/docs/vac/reseller/connect_backup_servers.html?ver=81
